14th May 2024

Detecting Mimikatz with the Sysmon Tool

Sysmon is a tool developed by Microsoft that allows recording the activities on the device it is on. It provides detailed information for activities such as the formation of processes and network connections, allowing abnormal situations to be detected. You can find detailed information about Sysmon from this link. You can access it from Microsoft’s site for installation and configuration.


It is a tool that allows obtaining passwords from memory in Windows systems. You can download it from the link below.


We will talk about 3 different ways to detect mimikatz in the system using Sysmon. These;

Watching Mimikatz Files

Monitoring the files named “mimikatz” created in the system is an option for detection. But since the file name can be easily changed, it is quite easy to circumvent. Care should be taken in this regard. You can apply the following rule for Sysmon Configuration. Looking at the output, it is understood that the “mimikatz.exe” file has been extracted from the compressed file.

<FileCreate onmatch="include">
         <TargetFilename condition="contains">mimikatz</TargetFilename>

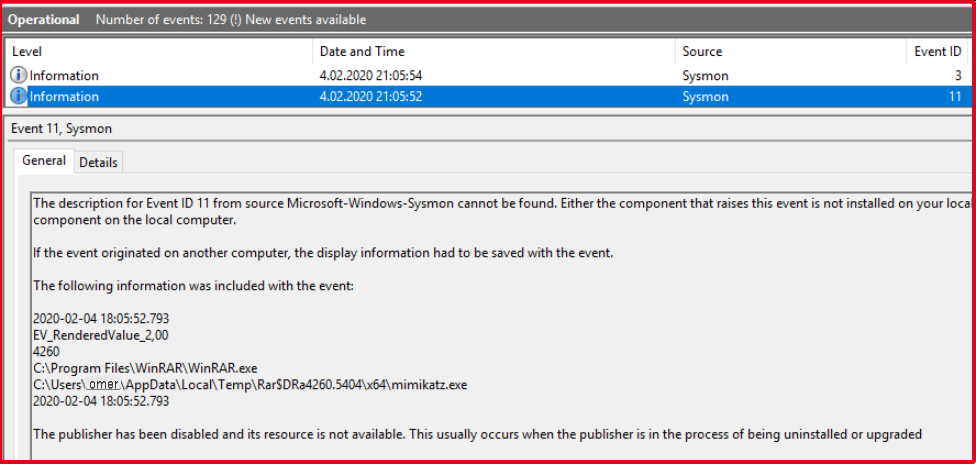

Sysmon's Result
Sysmon’s Result


Monitoring Hash Values

When a process with hash values ​​belonging to Mimikatz is started, Sysmon can be made to generate a warning. Since the hash value will be renewed with a small change to the file, this method is also not very healthy. Looking at the hash value of “mimikatz.exe” shows that it is “7862ac21eb3f8c4e8247c188c5f8179f”.

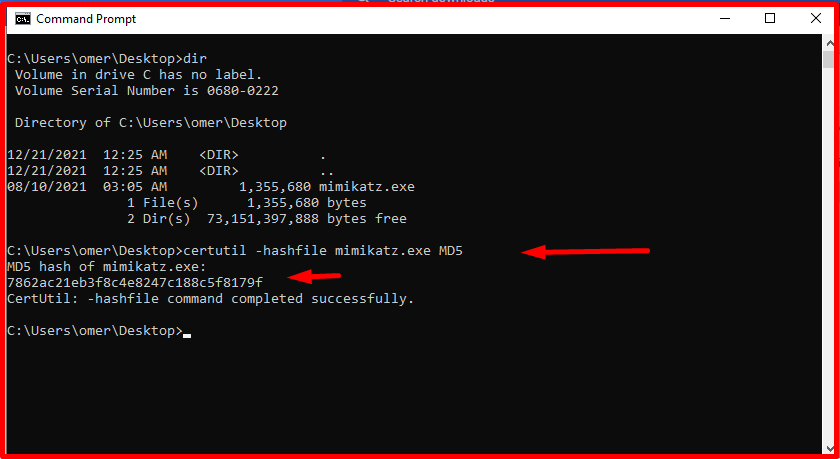

C:\Users\omer\Desktop>certutil -hashfile mimikatz.exe MD5
hash value
hash value

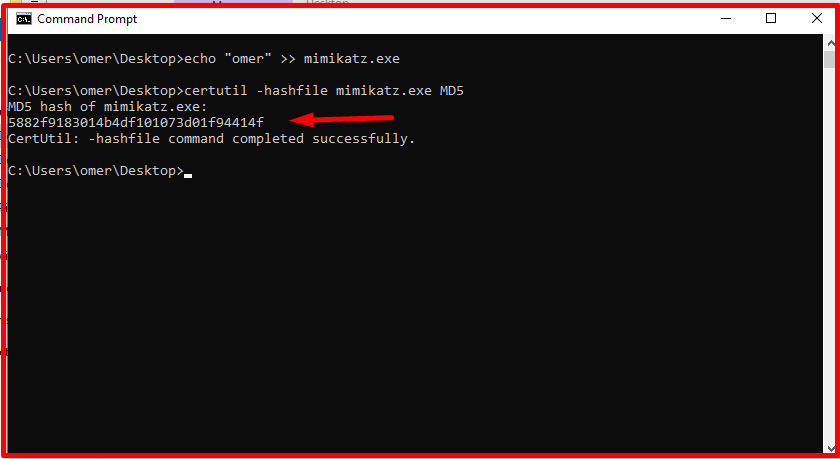

When a small addition is made to the file, its content will change and the hash value will also change. The screenshot showing that the hash value of “mimikatz.exe” has changed is as follows.

echo "omer" >> mimikatz.exe
certutil -hashfile mimikatz.exe MD5
mimikatz.exe" has changed
mimikatz.exe has changed


LEARN MORE  What is Splunk? How to Install Splunk?

Below is the configuration required to run the file with the hash value “7862ac21eb3f8c4e8247c188c5f8179f“.

<ProcessCreate onmatch="include">
         <Hashes condition="contains">7862ac21eb3f8c4e8247c188c5f8179f</Hashes>
Sysmon's Result
Sysmon’s Result


Monitoring the “lsass.exe” Process

Mimikatz uses lsass.exe to obtain passwords. With the monitoring of “lsass.exe“, the processes that call it are also recorded. Thus, all suspicious processes that call lsass.exe, not just mimikatz, are recorded. For more effective results, processes that call “lsass.exe” for legal activities can be excluded.

<ProcessAccess onmatch="include">
         <TargetImage condition="contains">lsass.exe</TargetImage>

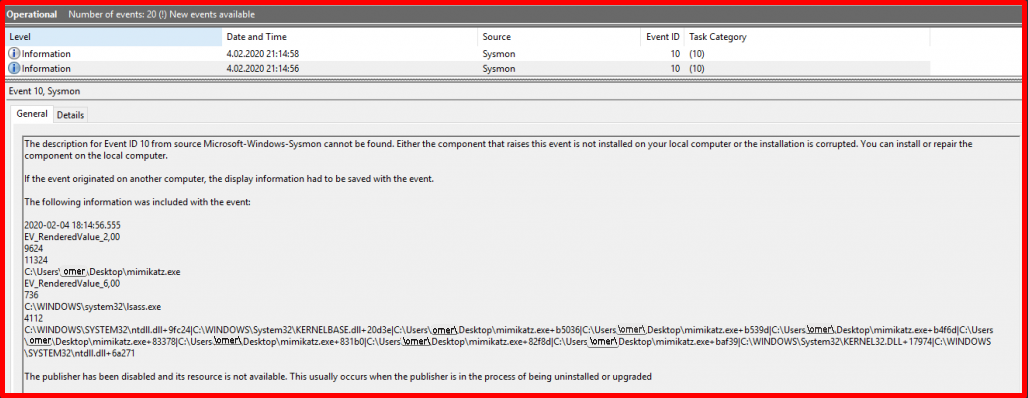

Sysmon's Result
Sysmon’s Result
